Timer Controlled Electric Ball Valves

Timer controlled electric ball valves are simplest solution to automate your drip irrigation in your farm field. There is no external control circuit is required to operate this Motorized ball valves. Power up the electric valve and set the ON and OFF time. You are ready to go! it opens and closes the valve at the programmed time. It is available in variety of sizes and material options. Sensoware® Electric Operated Ball Valves are cost effective for your agriculture or garden automation implementations.

timer controlled electric ball valve
electric valve timer schedular

Intelligent Valve Open/Close Schedular

An intelligent valve timer scheduler is a system designed to automate the timing and control of valve operations. Unlike traditional timer-based systems, intelligent valve schedulers incorporate the calendar level program along with real time programming.

calendar-icon

Calendar Function

Select which calendar days the valve should be opened or closed in combination with time.

timer icon

Timer Function

Use multiple program in real time when to open the valve and when to close.

GET.

Install the appropriate size of timer controlled ball valve in your pipeline

SET.

Power up the Valve with 12V/24V AC/DC supply. Program the ON and OFF days and timings.

GO.

Everything set in place. Just enjoy the automation.

Timer Controlled Electric Ball Valves 2 inch

Our Automatic Timer ball valve is available in Screwed ends for Agriculture automations for low pressure line. It is very cost effective and easy to install. It is available from 1 inch to 4 inch without manual override versions. The voltage options are available in 12V DC and 24V DC. AC220V on request.

timer controlled electric ball valve gallery
ball valve with timer
Video
Specifications
Size50mm / 2 Inch / Threaded Ends
MaterialPVC
Voltage12VDC / 24VDC / 220VAC
FunctionTimer Controlled ON / OFF
FeedbackOptional
Operating Speed60 Seconds
TemperatureAmbient
Number of Ports2 Way
Pressureupto 3 Bar

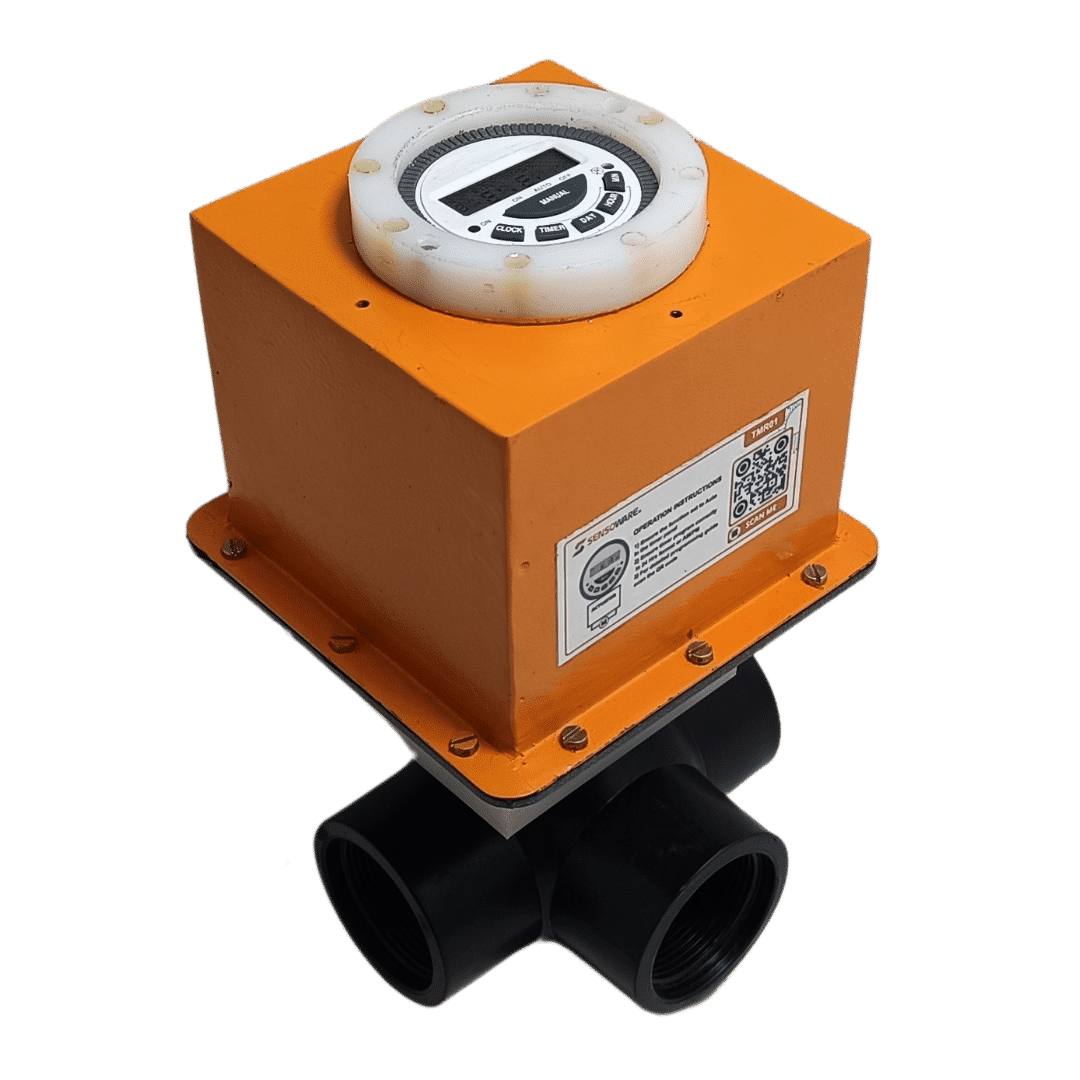

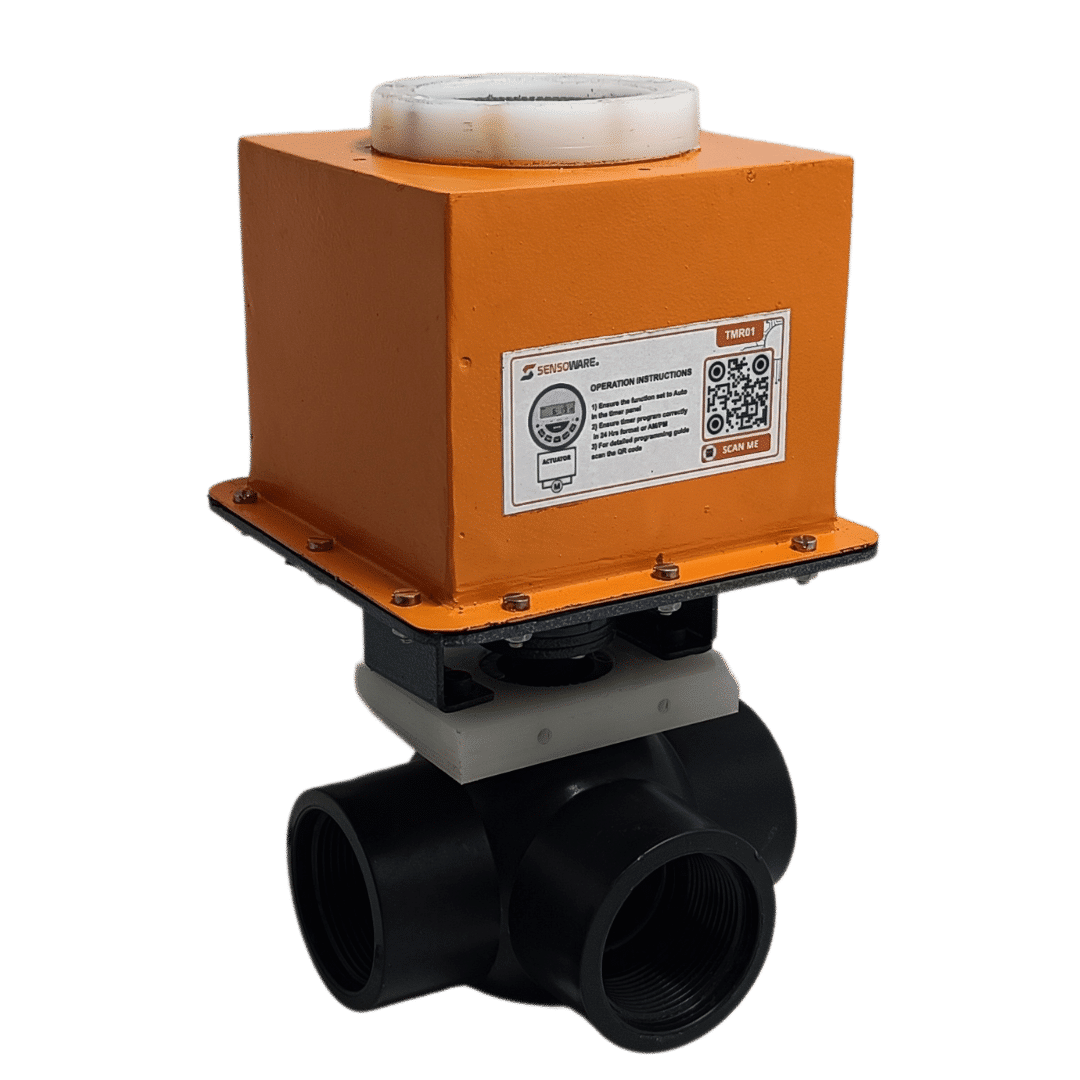

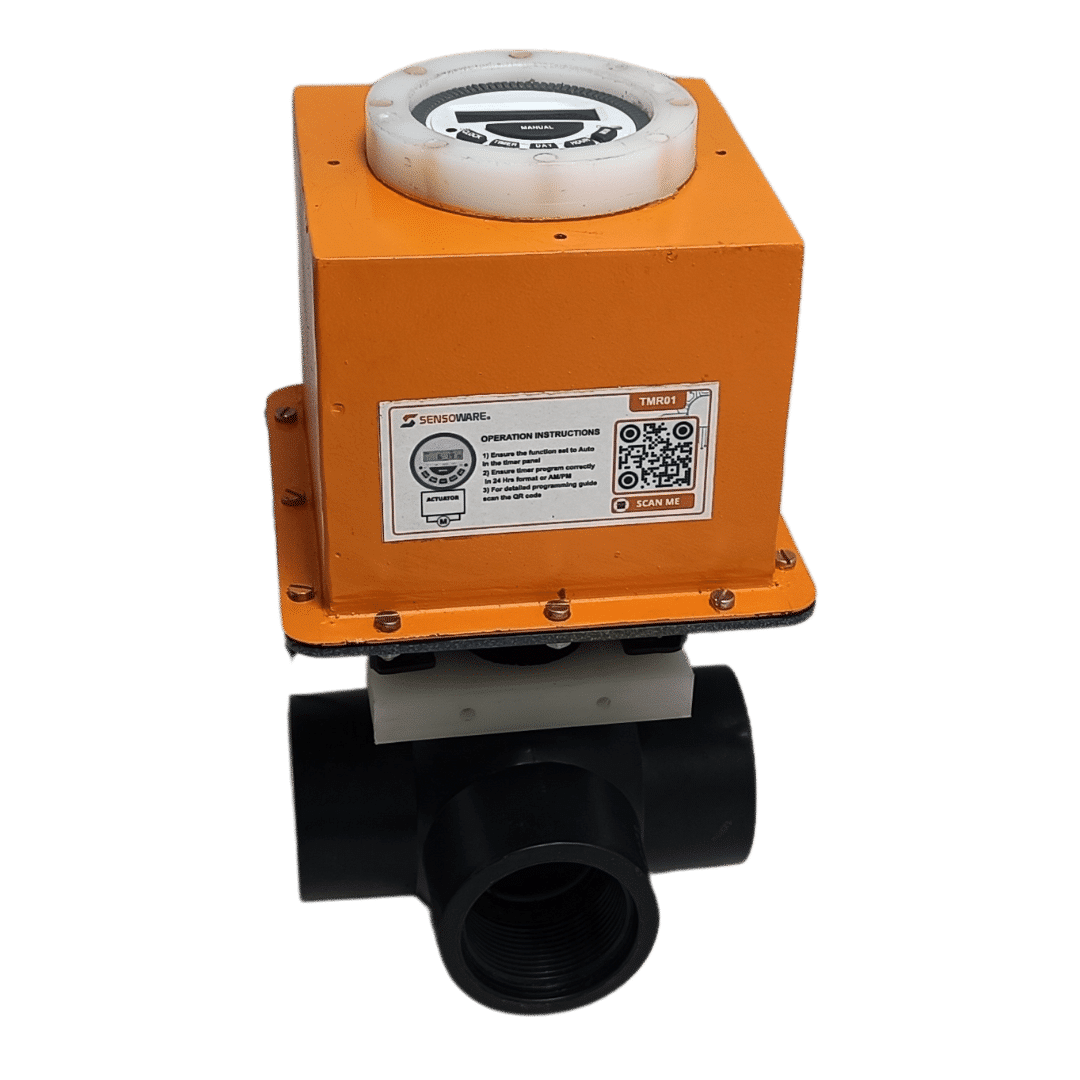

Motorized Timer Ball Valve – 3 Way Valve

Our Electric Timer Valve is available in 3 way to divert water flow to different crops.. It is very cost effective and easy to install. It is available from 1 inch to 4 inch without manual override versions. The voltage options are available in 12V DC and 24V DC. AC220V on request.

Specifications

Size40mm / 1.5 Inch / Threaded Ends
MaterialPVC
Voltage12VDC / 24VDC / 220VAC
FunctionTimer Controlled ON / OFF
FeedbackOptional
Operating Speed60 Seconds
TemperatureAmbient
Number of Ports3 Way
Pressureupto 3 Bar
Videohttps://youtu.be/762QZFt_eC0

Tired of running cables across your Farm Field for electric power?

Presenting

Solar Power Pack

solar powered automatic ball valve 0
