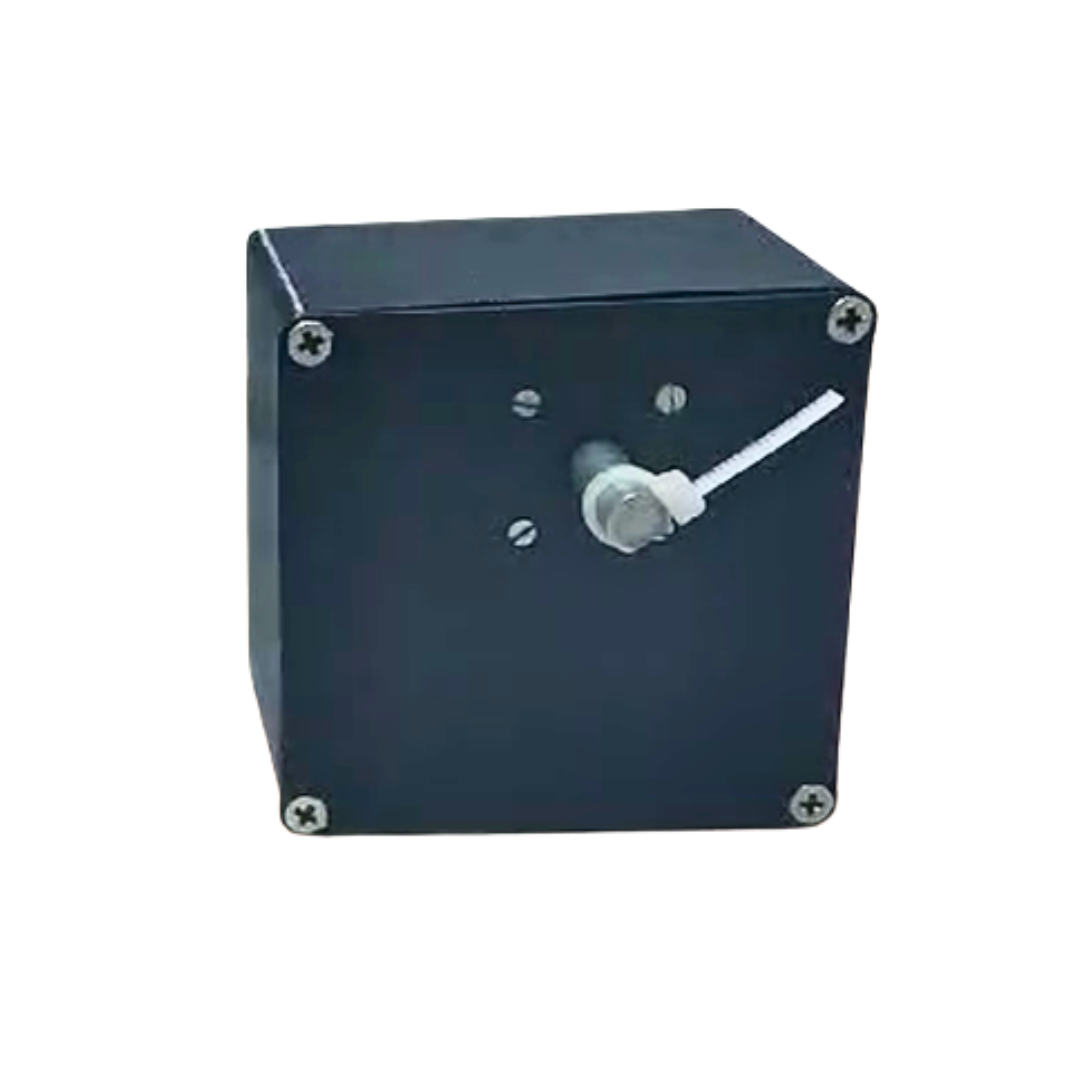

Compact Modulating Actuator for Gas Burners, Vacuum Pumps and Switchgears
Our Compact Modulating Actuator is a high-precision rotary device designed to provide smooth and reliable 180-degree motion in applications where space is limited and accuracy is critical. This actuator is purpose-built for automating manual control mechanisms in gas burners, vacuum pump systems, and electrical switchgear. Whether you’re fine-tuning a vacuum level, adjusting an air-fuel mixture in a burner, or rotating a low-load selector switch, this actuator delivers consistent performance with minimal footprint.
180° Smooth Modulation
The actuator is designed to provide seamless 180-degree rotary motion, enabling precise modulation in both directions. This smooth operation ensures consistent performance when used for applications like adjusting gas flow in burners, setting vacuum levels, or rotating light-load mechanical switches. With accurate positional control across the full half-turn range, the actuator minimizes vibration and mechanical wear, leading to longer life and reduced need for recalibration.
Ultra-Compact Design
Space is often a constraint in industrial panels, burner assemblies, and pump housings. That’s why this actuator is engineered with a compact footprint that allows easy integration into tight spaces without compromising on performance. Its low-profile housing fits comfortably in confined areas, making it ideal for retrofitting manual knobs or levers in equipment where space is at a premium. Despite its small size, it maintains structural integrity and stable operation under continuous use.
Low Torque Application
This actuator is optimized for light-duty tasks, delivering reliable performance for operations that do not require high torque. It is well-suited for rotating selector switches, adjusting dampers, or controlling valves with minimal resistance. By focusing on low-load movement, the actuator achieves high efficiency, low power consumption, and reduced mechanical strain — ideal for fine-tuning tasks where precision matters more than force.
Reliable and Durable Operation
Built for industrial use, the actuator features a robust internal mechanism designed to operate continuously without failure. It can withstand thousands of modulation cycles while maintaining consistent output. With quality components and tested materials, it offers resistance to common environmental stressors such as vibration, dust, and temperature changes. This reliability makes it suitable for unattended, long-term deployment in demanding conditions.
Flexible Control Input Compatibility
The actuator supports a variety of input control signals including 0–10V, 4-20mA analog, Modbus RS485 / TCP. This flexibility allows it to interface easily with PLCs, microcontrollers, and industrial automation systems. Whether it’s manual override, scheduled rotation, or sensor-triggered modulation, the actuator can adapt to your system’s control architecture without the need for complex reconfiguration.
Feedback and Position Sensing Options
For applications that require closed-loop control or real-time monitoring, the actuator is available with built-in feedback options. These may include analog potentiometer feedback or digital limit switches to indicate position status. Feedback helps in system diagnostics, automation calibration, and safety interlocks, ensuring the actuator’s position is always accurately known and recorded.
Customizable Mounting and Integration
Every application is different, so the actuator comes with multiple mounting options to simplify integration. Whether you need panel-mount brackets, custom linkages, or direct shaft coupling, the actuator can be configured to fit your mechanical setup. Its design supports both horizontal and vertical mounting orientations, adding to its versatility in real-world installations.
Environmental Protection Options
Depending on the application, the actuator can be supplied with IP-rated enclosures to resist moisture, dust, and industrial contaminants. For outdoor or harsh indoor environments, optional IP54 or IP65 versions ensure the actuator continues operating safely and efficiently, even in the presence of splashes, debris, or corrosive particles.
Energy Efficient Operation
Designed for low power consumption, the actuator is ideal for continuous or frequent use without adding significant load to the power system. Its efficient drive mechanism delivers reliable torque with minimal energy input, making it suitable for battery-backed or solar-powered setups. This helps reduce operational costs and supports energy-saving goals in industrial and automation environments.
Applications
Gas Burners
For gas burners, the actuator can be used to precisely modulate air-fuel mixture valves or combustion dampers. This improves combustion efficiency, stabilizes burner output, and allows for more refined thermal control in heating systems. Automating this process not only enhances energy efficiency but also reduces manual tuning errors, which are common in combustion-based applications.
Vacuum Pump Systems
In vacuum pump systems, this actuator is ideal for automating the adjustment of gas ballast valves or vacuum level control knobs. These adjustments are traditionally done manually and require precision to ensure optimal performance and to prevent contamination. By integrating the actuator, operators can achieve consistent vacuum settings remotely and with greater accuracy, especially in moisture-sensitive processes.
Electrical Switchgears
In electrical switchgear systems, the actuator serves as an effective solution for rotating light-duty selector switches, interlock controls, or changeover mechanisms. These tasks often involve repetitive manual actions or rotating forward and reverse, which can be automated using the actuator for better safety and operational consistency in power distribution panels and industrial control rooms.
See How Effortless Rotary Control Can Be!
Watch how our Compact Modulating Actuator delivers smooth 180° rotation, consistent performance, and hands-free automation in just seconds! This compact, precision-driven actuator is ideal for adjusting gas burners, vacuum pumps, and switchgear with ease. Experience its speed, accuracy, and space-saving design—perfect for OEMs, panel builders, and industrial automation setups.
