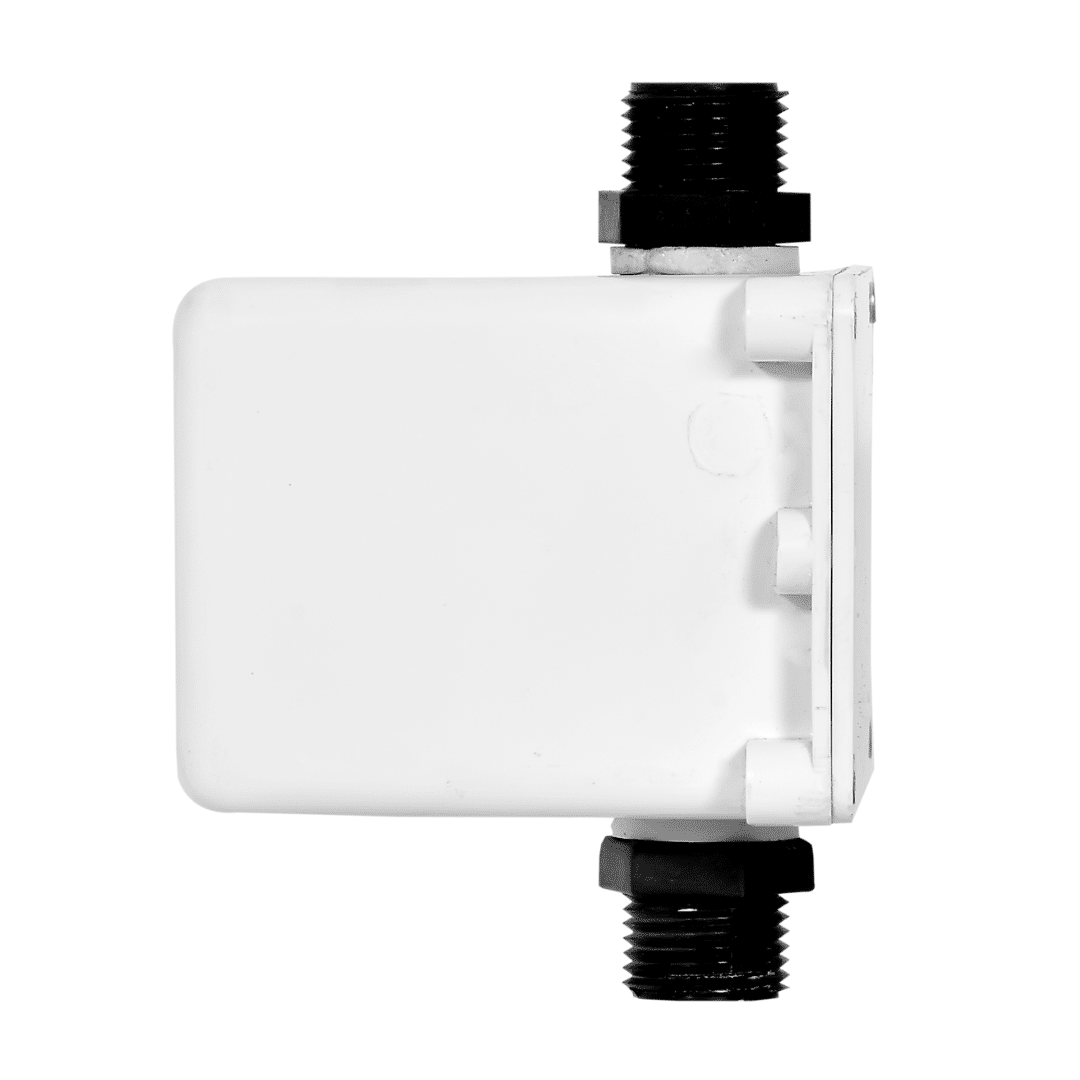

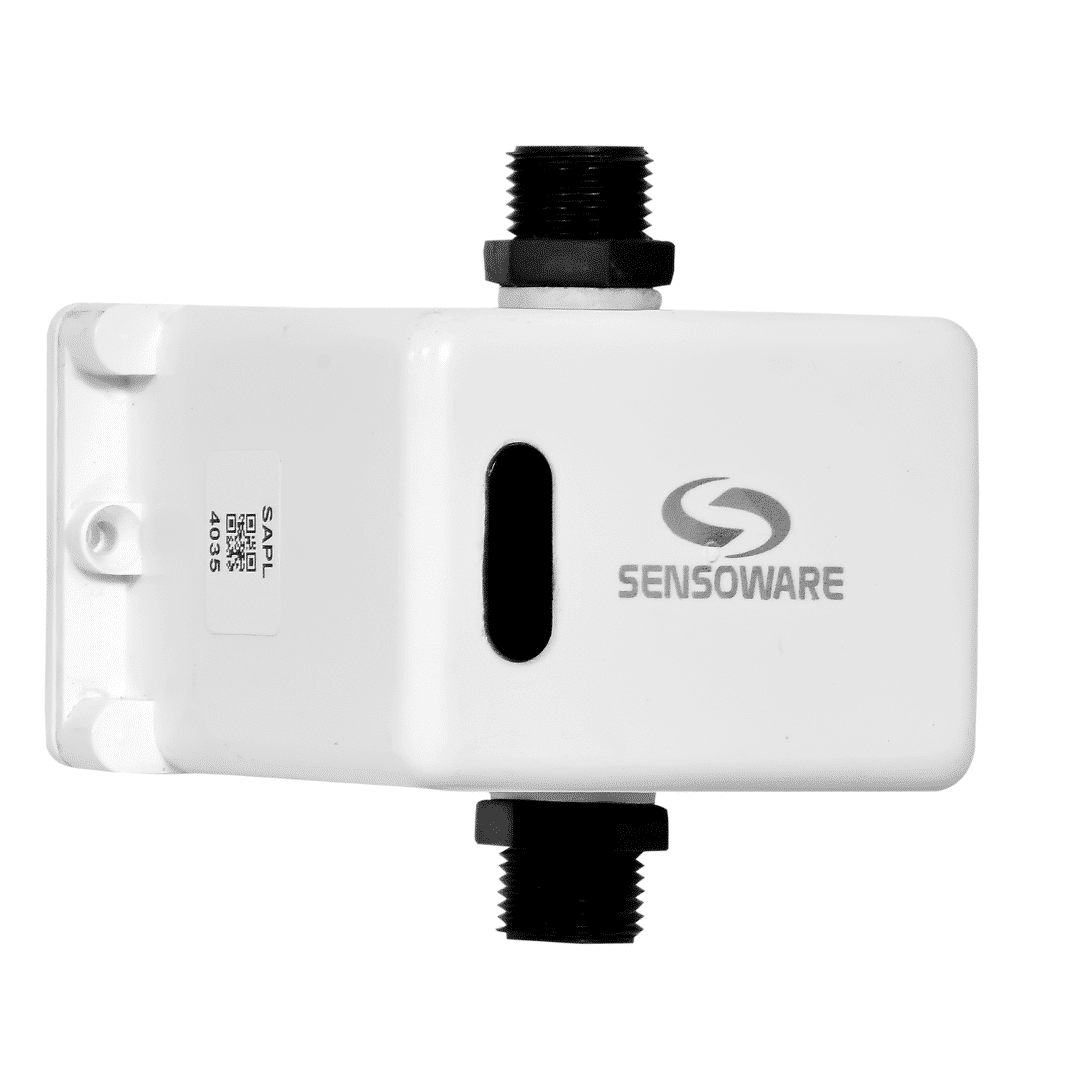

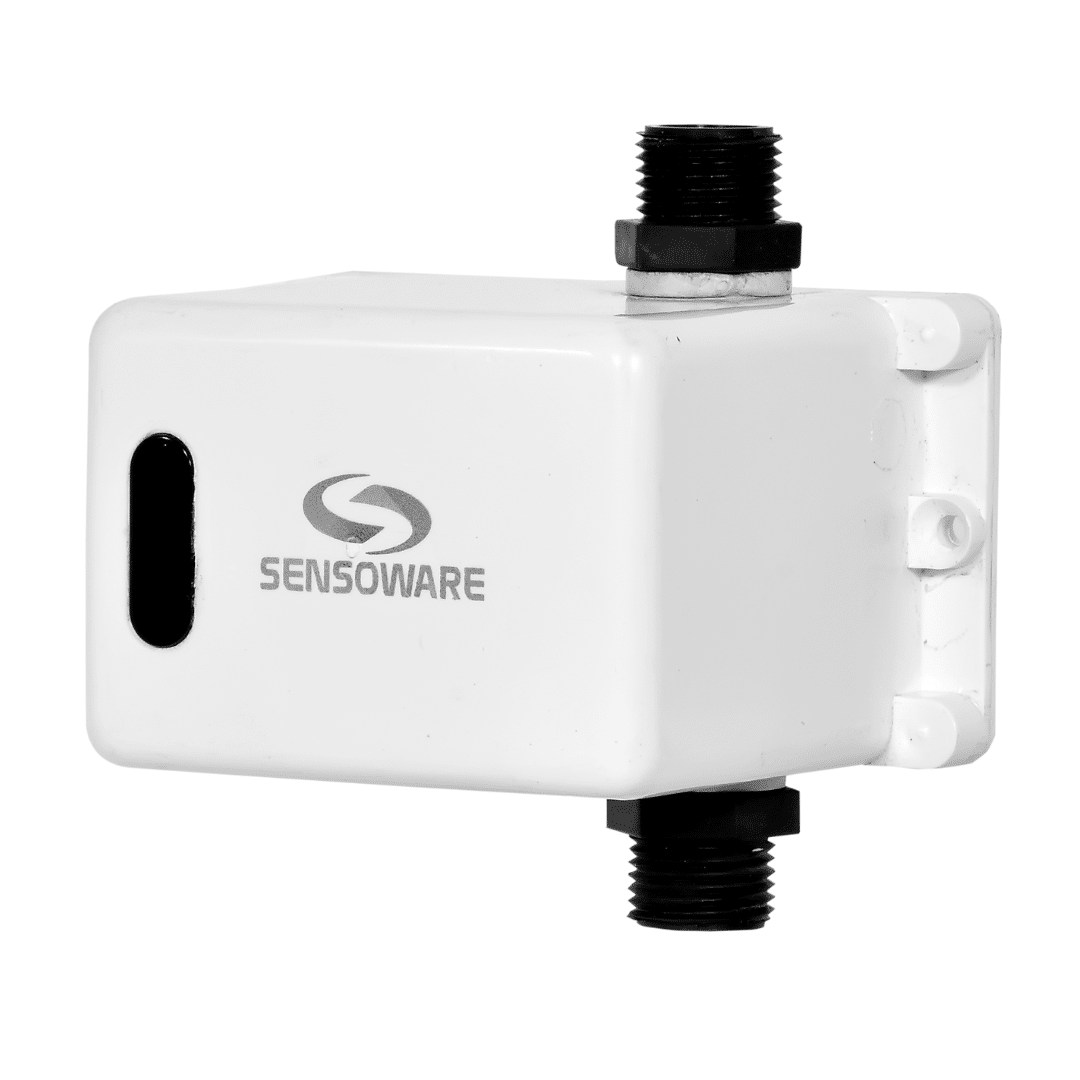

F1B Exposed Automatic Urinal Flusher

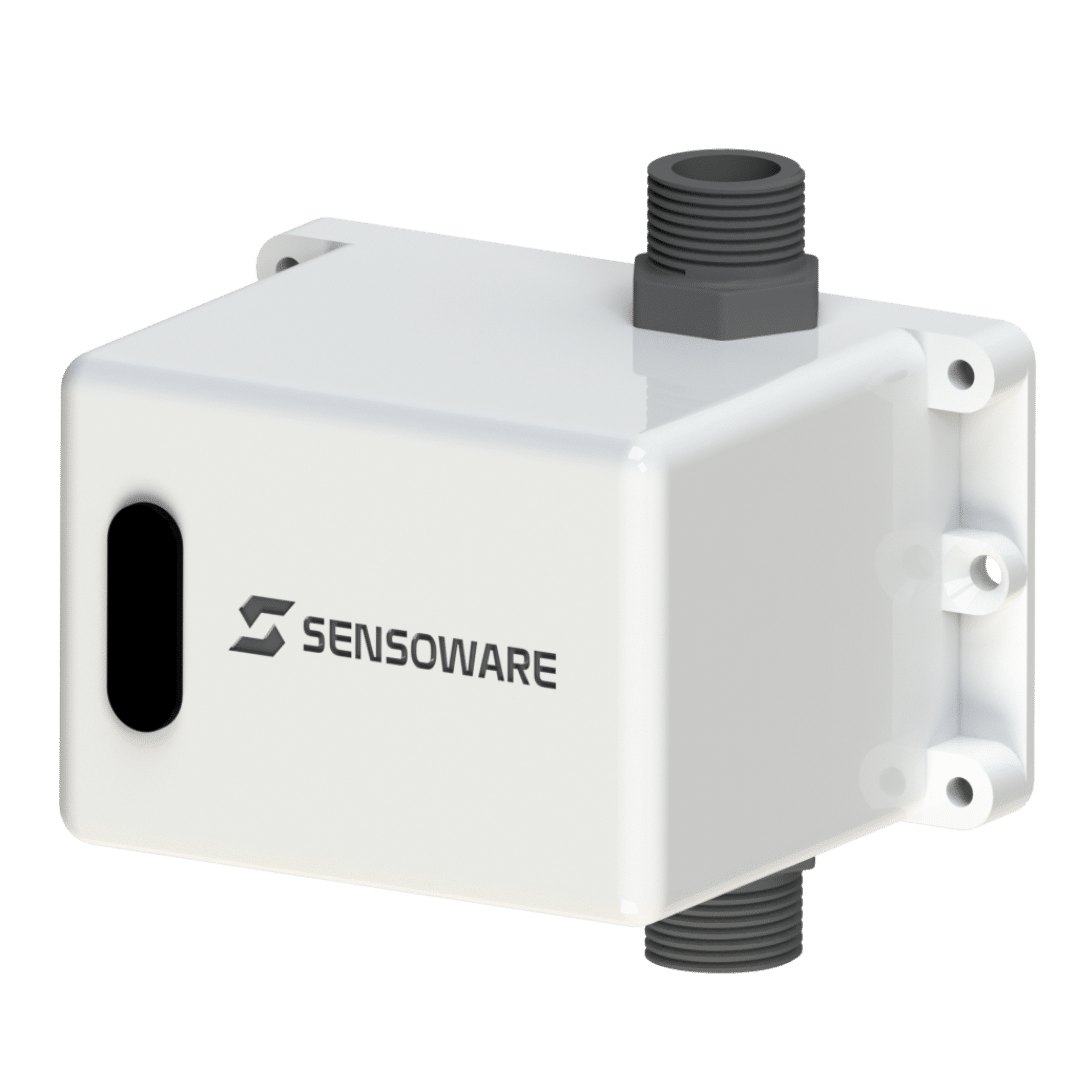

Sensoware F1 exposed urinal flusher is a compact system housing an energy-efficient sensor, electronic flush valve and sealed battery pack. Connect the inlet and outlet water hoses to prepare the unit for automatic flushing.
F1B Exposed Automatic Urinal Flusher
Compact. Battery operated.



Specifications
| Model | F1B |
|---|---|
| Function | Touchless Infrared Sensor |
| Material | ABS Plastic |
| Mounting | Wall Mounted |
| Flush Program | Pre and Post Flush |
| Water Port Size | 1/2 inch BSP Male Thread |
| Power Source | Battery Pack 6V DC |
| Port Orientation | 180° |
| Sensor Range | 300 to 350 (factory set) |
| See it in action | Watch demonstration |
Dimensions
Check the compact F1B unit dimensions against your installation space.

Quickly Convert to Touchfree Restroom with F1 Exposed Sensor Urinals
F1 exposed sensor urinals offer a quick upgrade from manual to touchfree flushing. The exposed unit operates on a battery pack, so no external power wiring is needed.
- Compact wall-mounted exposed unit
- Sealed 6V DC battery pack
- Pre- and post-flush programming
A glance at some of our User Installations
A simple installation to make your restrooms automatic. Check compatibility with your existing urinal setup.



Frequently Asked Questions
What is an exposed urinal flusher or urinal sensor?
An exposed urinal sensor is mounted visibly on the wall or outside the urinal. Its accessible housing contains the sensor and flushing components for maintenance and repair.
How does the urinal sensor work?
The infrared sensor detects a user's presence and triggers the programmed flushing cycle. F1B supports pre- and post-flush operation.
How much is the urinal sensor price?
Use the pricing form below to request the current F1B product price.
How is this different from a urinal sensor kit?
The F1B is a complete exposed wall-mounted unit. A sensor kit provides components for compatible integrated urinal installations. Check the installation type and model compatibility before choosing.
